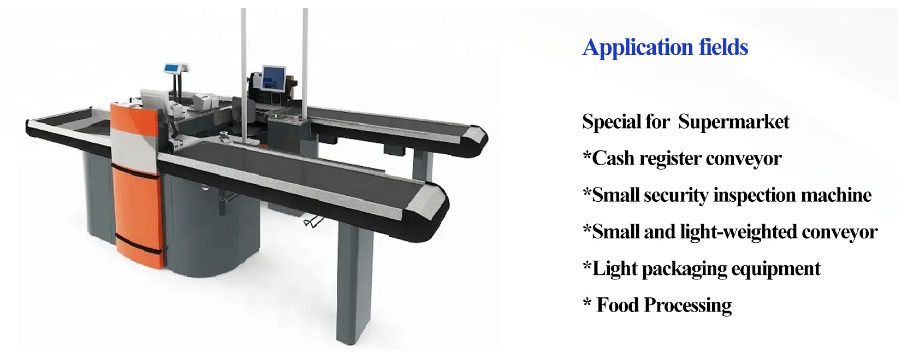

Drum motor (Market Cashier box)

PDF

Product Description:

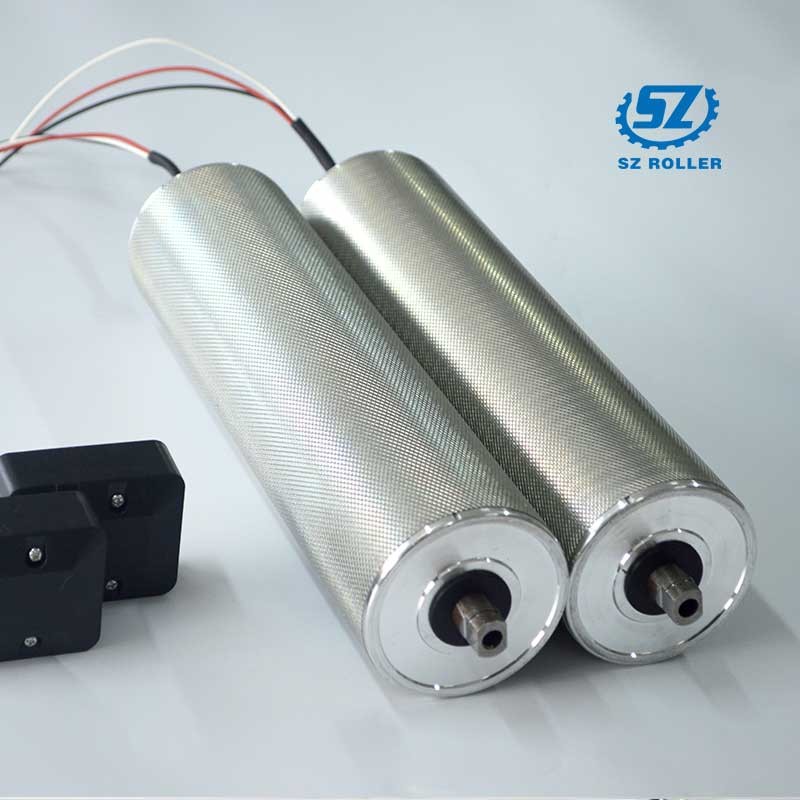

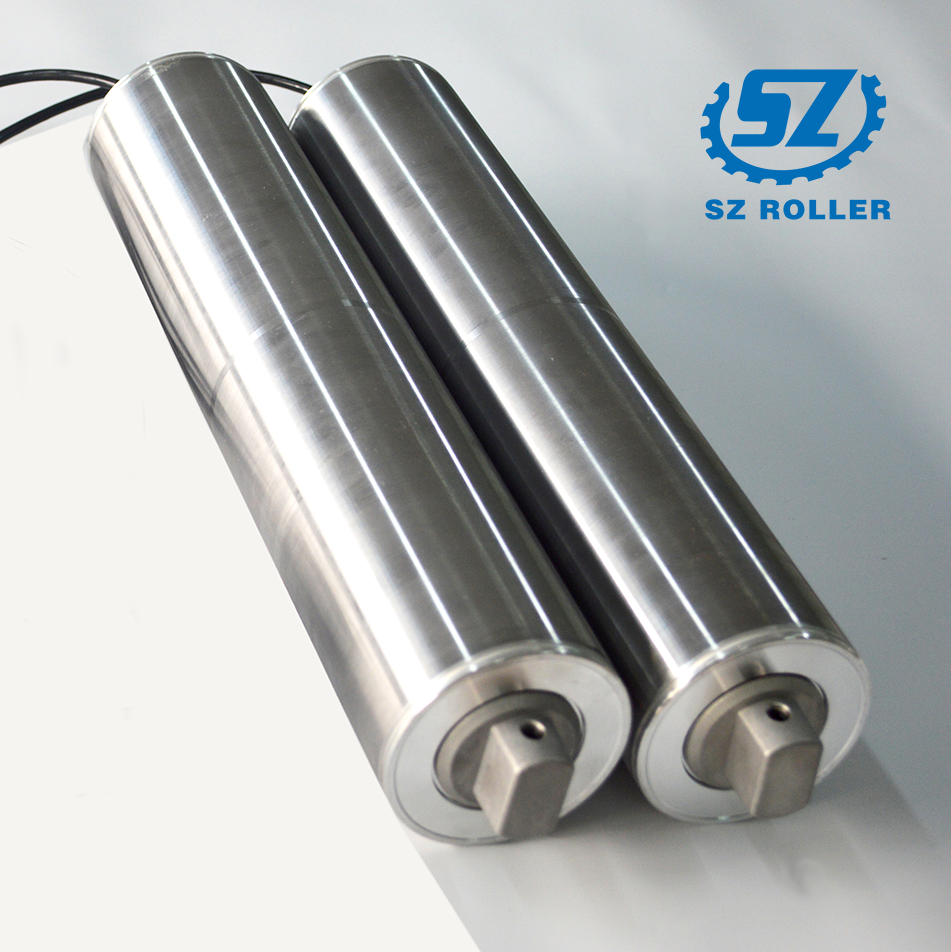

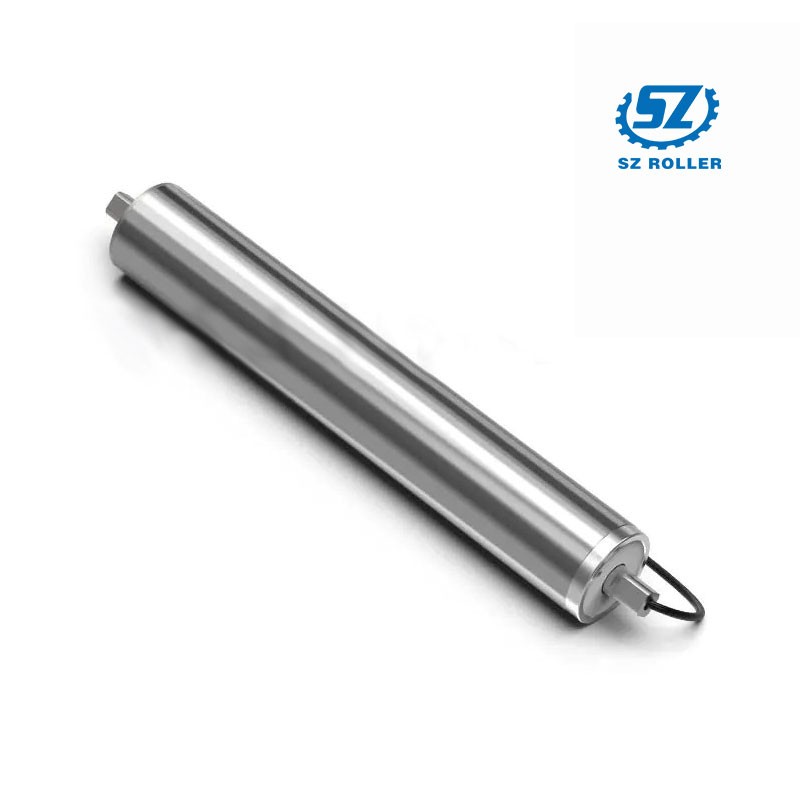

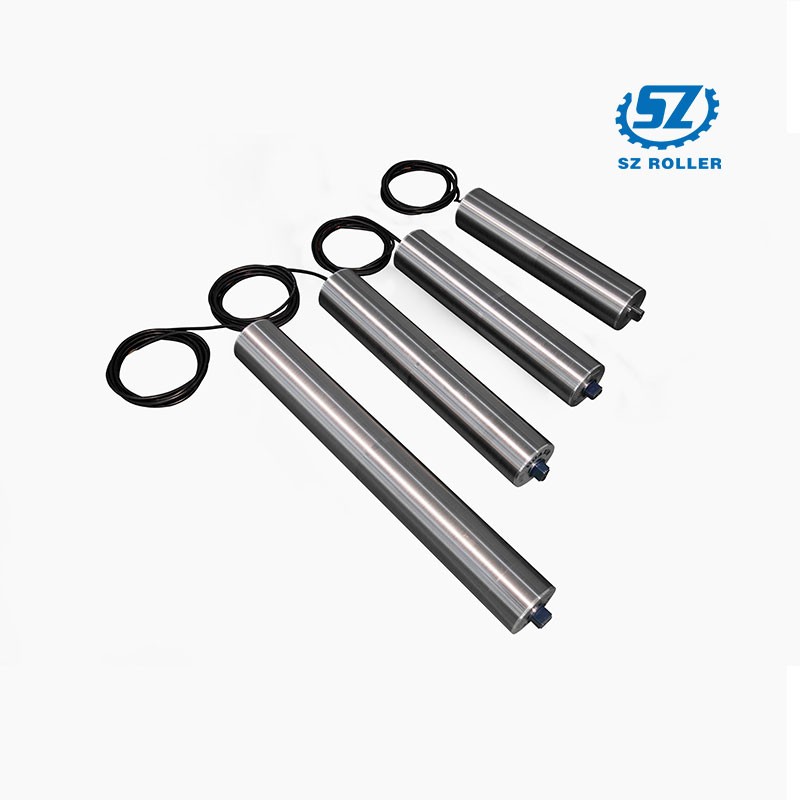

Product Name：DM80i Drum motor (Market Cashier box)

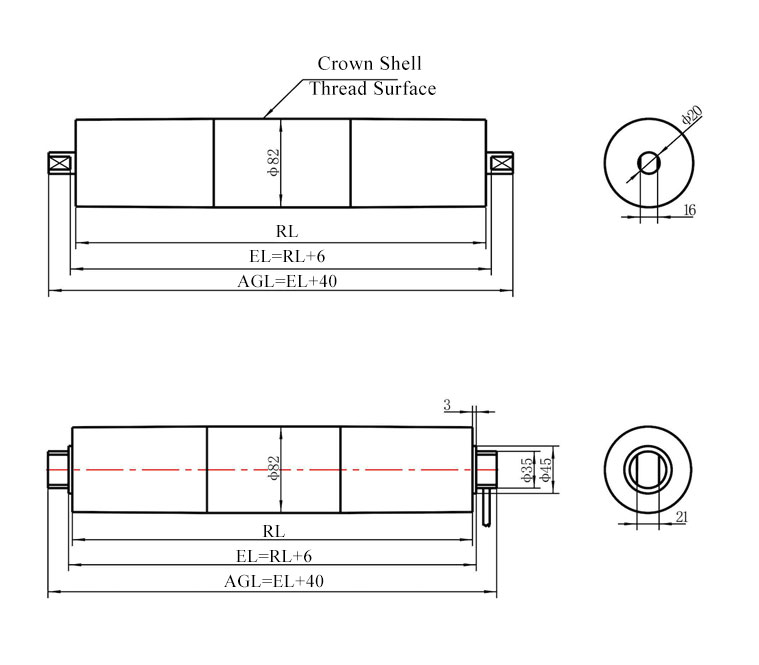

Drawing:

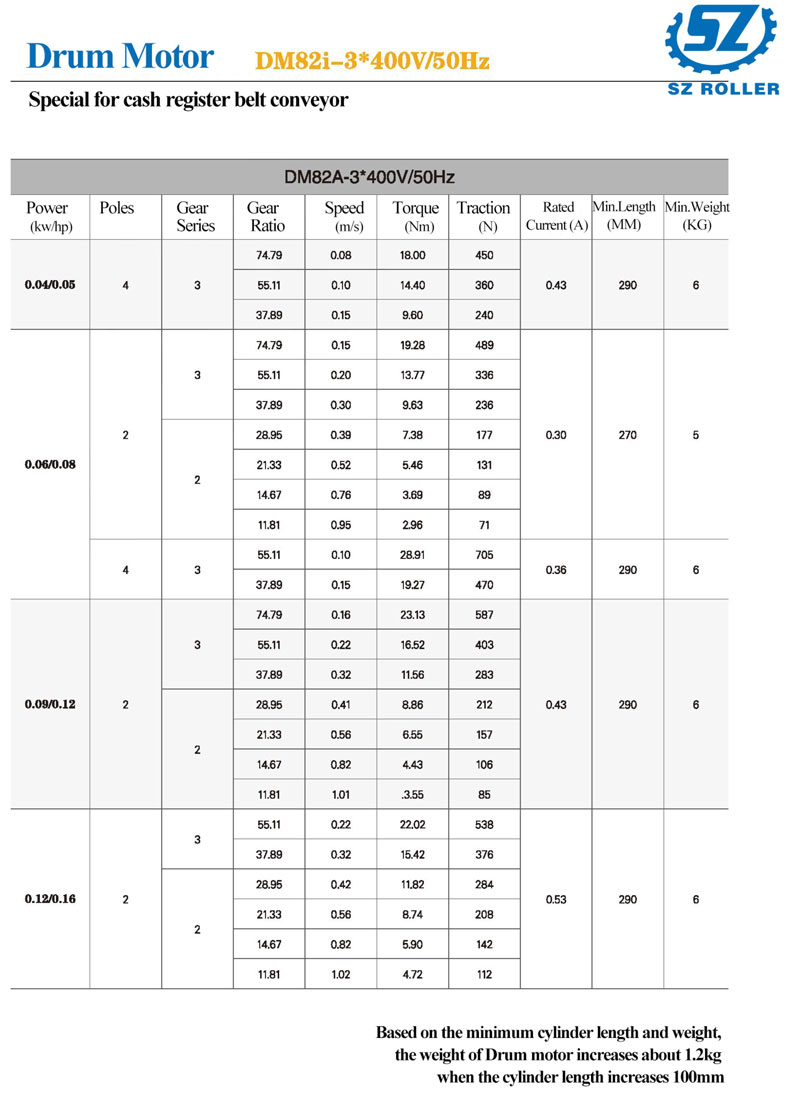

Description(DM80i)

1. Diameter: 82mm, Power: 90w/120w.
2. The length (RL) can be customized according to customer requirements,rubber lagging is optional.
4. Material (End cover and reducing sleeve): aluminum alloy
5. Material (Tube and shaft):Galvanized steel, SUS 304 optional in medical/food industry.
6. 3PH or 1PH AC motor,Voltage: 415V, 380V, 220V, 115V available.Frequency: 50 or 60HZ
7. Oil-resistant cable, length: 3 Meters
8. Insulation level: Class F, overheating protector
9. Can only be installed horizontally

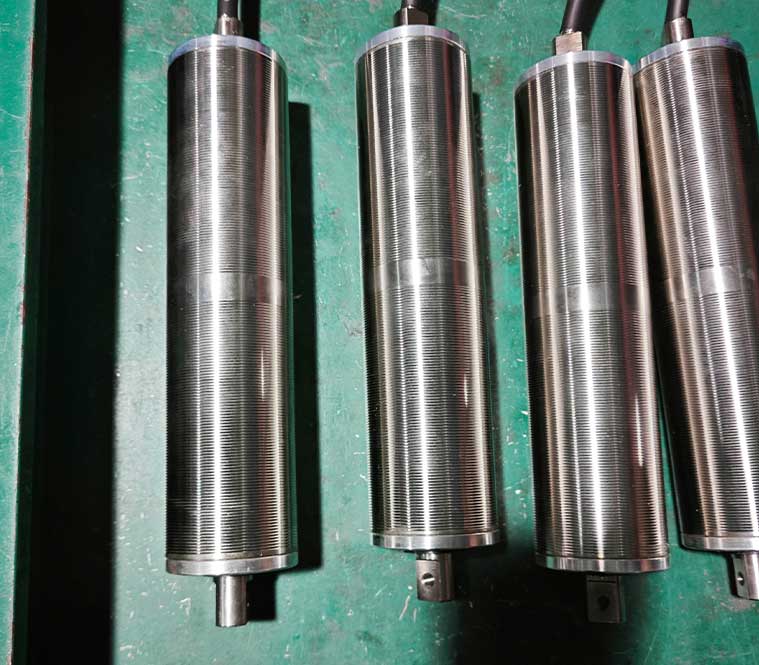

10.To prevent the belt from deflecting, the pipe body is made into a roller type. Apply anti-rust oil.

11.DM113i can also be applied to this scenario, and the power will be 120W. Ask sales staff for details.
